Tutorial on Analyzers for Education Language Data
Welcome to this tutorial on using `edu-convokit <https://github.com/rosewang2008/edu_convokit>`__ for analyzing your education language data! Analyzing your data with edu-convokit can help you understand the language used by your students and educators. In the previous tutorial on ``Annotator` <https://colab.research.google.com/drive/1rBwEctFtmQowZHxralH2OGT5uV0zRIQw>`__, we learned how to annotate your data. We will use those annotations to analyze your data in this tutorial.
Motivation on Analyzer
Analysis on education data can happen in many ways. - 🔍 It can happen qualitatively where you look at the data; for example, in the previous tutorial, we annotated the data for student_reasoning and you might be interested in looking at the specific instances of student reasoning. - 📊 It can happen quantitatively where you look at the data in aggregate; for example, you might be interested in the average amount of time the student and educator talk. - 💬 You might be interested in
lexically analyzing the data; for example, you might be interested in what words the student uses the most compared to the educator. - 📈 You might be interested in temporally analyzing the data; for example, you might be interested in the amount of time the student and educator talk over the course of their interaction. - 🤖 You might also be interested in using GPT to analyze the data; for example, you might want GPT4 to summarize the transcript.
📚 Learning Objectives
In this tutorial, you will learn how to use Analyzer to satisfy all these analysis needs. You will learn how to use
The Analyzer Modules
🔍 Qualitative Analyzer (Section Link 🔗)
📊 Quantitative Analyzer (Section Link 🔗)
💬 Lexical Analyzer (Section Link 🔗)
📈 Temporal Analyzer (Section Link 🔗)
🤖 GPT Conversation Analyzer (Section Link 🔗)
The Different Data Entry Points for Analyzer
Single Transcript (Section Link 🔗)
Data Directory (Section Link 🔗)
List of Transcripts (Section Link 🔗)
If you are interested in seeing examples of these analyzers on full datasets, please check out our other tutorials where we apply everything to the: - NCTE dataset with an elementary math classroom data - TalkMoves dataset with a K-12 math classroom data - Amber dataset, with 8th/0th grade math tutoring data
If you want to add additional analysis to edu-convokit, please make a pull request to the repo.
Without further ado, let’s get started!
Installation
As always, we will start by installing and importing edu-convokit.
[1]:
!pip install git+https://github.com/rosewang2008/edu-convokit.git
Collecting git+https://github.com/rosewang2008/edu-convokit.git
Cloning https://github.com/rosewang2008/edu-convokit.git to /private/var/folders/ym/bc_swn410fz5j89bjtmslvzh0000gq/T/pip-req-build-dmdqg8qr
Running command git clone --filter=blob:none --quiet https://github.com/rosewang2008/edu-convokit.git /private/var/folders/ym/bc_swn410fz5j89bjtmslvzh0000gq/T/pip-req-build-dmdqg8qr
Resolved https://github.com/rosewang2008/edu-convokit.git to commit 87734dbfd1847bdee563aafd6aa1307238ef1478
Preparing metadata (setup.py) ... done
Requirement already satisfied: tqdm in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (4.65.0)
Requirement already satisfied: numpy in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (1.24.3)
Requirement already satisfied: scipy in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (1.10.1)
Requirement already satisfied: nltk in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (3.8.1)
Requirement already satisfied: torch in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (2.0.1)
Requirement already satisfied: transformers in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (4.29.2)
Requirement already satisfied: clean-text in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (0.6.0)
Requirement already satisfied: openpyxl in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (3.1.2)
Requirement already satisfied: spacy in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (3.7.2)
Requirement already satisfied: gensim in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (3.7.0)
Requirement already satisfied: num2words==0.5.10 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (0.5.10)
Requirement already satisfied: scikit-learn in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (1.2.2)
Requirement already satisfied: matplotlib in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (3.7.1)
Requirement already satisfied: seaborn in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (0.12.2)
Requirement already satisfied: pandas in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (2.0.1)
Requirement already satisfied: tiktoken in /Users/rewang/miniconda3/lib/python3.11/site-packages (from edu-convokit==0.0.1) (0.5.2)
Requirement already satisfied: docopt>=0.6.2 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from num2words==0.5.10->edu-convokit==0.0.1) (0.6.2)
Requirement already satisfied: emoji<2.0.0,>=1.0.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from clean-text->edu-convokit==0.0.1) (1.7.0)
Requirement already satisfied: ftfy<7.0,>=6.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from clean-text->edu-convokit==0.0.1) (6.1.3)
Requirement already satisfied: six>=1.5.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from gensim->edu-convokit==0.0.1) (1.16.0)
Requirement already satisfied: smart-open>=1.7.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from gensim->edu-convokit==0.0.1) (6.4.0)
Requirement already satisfied: contourpy>=1.0.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (1.2.0)
Requirement already satisfied: cycler>=0.10 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (4.44.0)
Requirement already satisfied: kiwisolver>=1.0.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (1.4.5)
Requirement already satisfied: packaging>=20.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (23.1)
Requirement already satisfied: pillow>=6.2.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (10.1.0)
Requirement already satisfied: pyparsing>=2.3.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (3.1.1)
Requirement already satisfied: python-dateutil>=2.7 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from matplotlib->edu-convokit==0.0.1) (2.8.2)
Requirement already satisfied: click in /Users/rewang/miniconda3/lib/python3.11/site-packages (from nltk->edu-convokit==0.0.1) (8.1.7)
Requirement already satisfied: joblib in /Users/rewang/miniconda3/lib/python3.11/site-packages (from nltk->edu-convokit==0.0.1) (1.3.2)
Requirement already satisfied: regex>=2021.8.3 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from nltk->edu-convokit==0.0.1) (2023.10.3)
Requirement already satisfied: et-xmlfile in /Users/rewang/miniconda3/lib/python3.11/site-packages (from openpyxl->edu-convokit==0.0.1) (1.1.0)
Requirement already satisfied: pytz>=2020.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from pandas->edu-convokit==0.0.1) (2023.3.post1)
Requirement already satisfied: tzdata>=2022.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from pandas->edu-convokit==0.0.1) (2023.3)
Requirement already satisfied: threadpoolctl>=2.0.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from scikit-learn->edu-convokit==0.0.1) (3.2.0)
Requirement already satisfied: spacy-legacy<3.1.0,>=3.0.11 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (3.0.12)
Requirement already satisfied: spacy-loggers<2.0.0,>=1.0.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (1.0.5)
Requirement already satisfied: murmurhash<1.1.0,>=0.28.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (1.0.10)
Requirement already satisfied: cymem<2.1.0,>=2.0.2 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (2.0.8)
Requirement already satisfied: preshed<3.1.0,>=3.0.2 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (3.0.9)
Requirement already satisfied: thinc<8.3.0,>=8.1.8 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (8.2.2)
Requirement already satisfied: wasabi<1.2.0,>=0.9.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (1.1.2)
Requirement already satisfied: srsly<3.0.0,>=2.4.3 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (2.4.8)
Requirement already satisfied: catalogue<2.1.0,>=2.0.6 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (2.0.10)
Requirement already satisfied: weasel<0.4.0,>=0.1.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (0.3.4)
Requirement already satisfied: typer<0.10.0,>=0.3.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (0.9.0)
Requirement already satisfied: requests<3.0.0,>=2.13.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (2.31.0)
Requirement already satisfied: pydantic!=1.8,!=1.8.1,<3.0.0,>=1.7.4 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (2.5.2)
Requirement already satisfied: jinja2 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (3.1.2)
Requirement already satisfied: setuptools in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (69.0.2)
Requirement already satisfied: langcodes<4.0.0,>=3.2.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from spacy->edu-convokit==0.0.1) (3.3.0)
Requirement already satisfied: filelock in /Users/rewang/miniconda3/lib/python3.11/site-packages (from torch->edu-convokit==0.0.1) (3.13.1)
Requirement already satisfied: typing-extensions in /Users/rewang/miniconda3/lib/python3.11/site-packages (from torch->edu-convokit==0.0.1) (4.8.0)
Requirement already satisfied: sympy in /Users/rewang/miniconda3/lib/python3.11/site-packages (from torch->edu-convokit==0.0.1) (1.12)
Requirement already satisfied: networkx in /Users/rewang/miniconda3/lib/python3.11/site-packages (from torch->edu-convokit==0.0.1) (3.2.1)
Requirement already satisfied: huggingface-hub<1.0,>=0.14.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from transformers->edu-convokit==0.0.1) (0.18.0)
Requirement already satisfied: pyyaml>=5.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from transformers->edu-convokit==0.0.1) (6.0.1)
Requirement already satisfied: tokenizers!=0.11.3,<0.14,>=0.11.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from transformers->edu-convokit==0.0.1) (0.13.3)
Requirement already satisfied: wcwidth<0.3.0,>=0.2.12 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from ftfy<7.0,>=6.0->clean-text->edu-convokit==0.0.1) (0.2.12)
Requirement already satisfied: fsspec>=2023.5.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from huggingface-hub<1.0,>=0.14.1->transformers->edu-convokit==0.0.1) (2023.10.0)
Requirement already satisfied: annotated-types>=0.4.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from pydantic!=1.8,!=1.8.1,<3.0.0,>=1.7.4->spacy->edu-convokit==0.0.1) (0.6.0)
Requirement already satisfied: pydantic-core==2.14.5 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from pydantic!=1.8,!=1.8.1,<3.0.0,>=1.7.4->spacy->edu-convokit==0.0.1) (2.14.5)
Requirement already satisfied: charset-normalizer<4,>=2 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from requests<3.0.0,>=2.13.0->spacy->edu-convokit==0.0.1) (2.0.4)
Requirement already satisfied: idna<4,>=2.5 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from requests<3.0.0,>=2.13.0->spacy->edu-convokit==0.0.1) (3.4)
Requirement already satisfied: urllib3<3,>=1.21.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from requests<3.0.0,>=2.13.0->spacy->edu-convokit==0.0.1) (1.26.16)
Requirement already satisfied: certifi>=2017.4.17 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from requests<3.0.0,>=2.13.0->spacy->edu-convokit==0.0.1) (2023.7.22)
Requirement already satisfied: blis<0.8.0,>=0.7.8 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from thinc<8.3.0,>=8.1.8->spacy->edu-convokit==0.0.1) (0.7.11)
Requirement already satisfied: confection<1.0.0,>=0.0.1 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from thinc<8.3.0,>=8.1.8->spacy->edu-convokit==0.0.1) (0.1.4)
Requirement already satisfied: cloudpathlib<0.17.0,>=0.7.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from weasel<0.4.0,>=0.1.0->spacy->edu-convokit==0.0.1) (0.16.0)
Requirement already satisfied: MarkupSafe>=2.0 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from jinja2->spacy->edu-convokit==0.0.1) (2.1.3)
Requirement already satisfied: mpmath>=0.19 in /Users/rewang/miniconda3/lib/python3.11/site-packages (from sympy->torch->edu-convokit==0.0.1) (1.3.0)
Building wheels for collected packages: edu-convokit
Building wheel for edu-convokit (setup.py) ... done
Created wheel for edu-convokit: filename=edu_convokit-0.0.1-py3-none-any.whl size=34342 sha256=36f4e05e8ae071db4c30d9e76b828261acc4e15791f3fdb400168d06ec423f37
Stored in directory: /private/var/folders/ym/bc_swn410fz5j89bjtmslvzh0000gq/T/pip-ephem-wheel-cache-dfn5mogy/wheels/4b/9d/cf/a5b069f3d435ef1f583a9749713d46b338038ff982b0e7cb5e
Successfully built edu-convokit
Installing collected packages: edu-convokit
Successfully installed edu-convokit-0.0.1
[2]:
from edu_convokit.analyzers import (
QualitativeAnalyzer,
QuantitativeAnalyzer,
LexicalAnalyzer,
TemporalAnalyzer,
GPTConversationAnalyzer
)
# For helping us load data
from edu_convokit import utils
[nltk_data] Downloading package stopwords to
[nltk_data] /Users/rewang/nltk_data...
[nltk_data] Package stopwords is already up-to-date!
📑 Data
Let’s load the data annotated from the last tutorial on using the ``Annotator` to annotate the data <TODO>`__. It’s a transcript from the TalkMoves dataset. It contains our annotations on talk time, student reasoning, teacher focusing questions, and conversational uptake.
[12]:
!wget https://github.com/rosewang2008/edu-convokit/blob/main/data/annotated_data.csv
data_fname = "annotated_data.csv"
df = utils.load_data(data_fname) # Handles loading data from different file types including: .csv, .xlsx, .json
# Here are the same variables we used in the previous notebook
TEXT_COLUMN = "Sentence"
SPEAKER_COLUMN = "Speaker"
known_replacement_names = [f"[STUDENT_{i}]" for i in range(3)]
# Annotation columns from the previous notebook
TALK_TIME_COLUMN = "talktime"
STUDENT_REASONING_COLUMN = "student_reasoning"
TEACHER_FOCUSING_QUESTION_COLUMN = "focusing_questions"
UPTAKE_COLUMN = "uptake"
df.head()
🔍 Qualitative Analysis
Let’s start by looking at the data qualitatively. We will use the QualitativeAnalyzer to look at the data.
Ever wondered whether there was a quick way to … - Look at examples of student reasoning? - Look at examples of educator focusing questions? - Look at examples of high conversational uptake by the educator?
This is where the QualitativeAnalyzer comes in handy!
Let’s start by looking at examples of student reasoning.
[ ]:
qual_analyzer = QualitativeAnalyzer()
qual_analyzer.print_examples(
df=df,
speaker_column=SPEAKER_COLUMN,
text_column=TEXT_COLUMN,
# We want to look at examples for the reasoning feature
feature_column=STUDENT_REASONING_COLUMN,
# We want to look at positive examples of reasoning
feature_value=1.0,
# Let's look at 3 examples
max_num_examples=3
)
student_reasoning: 1.0
>> [STUDENT_1]: one half by one sixth. Cause if you put six ones up to a whole
student_reasoning: 1.0
>> [STUDENT_0]: This would be one third, and this is one half of dark green, and then it would be bigger by one sixth, because
student_reasoning: 1.0
>> [STUDENT_1]: I mean it's bigger than one tenth, I mean twelfth, one twelfth, one twelfth.
🎉 Great! This is a quick way to look at examples of student reasoning.
If you’re curious in looking at the preceding and succeeding utterances (for context), you can easily do that by specifying the number of lines:
[ ]:
qual_analyzer.print_examples(
df=df,
speaker_column=SPEAKER_COLUMN,
text_column=TEXT_COLUMN,
feature_column=STUDENT_REASONING_COLUMN,
feature_value=1.0,
max_num_examples=3,
# We want to look at the previous 2 lines of context
show_k_previous_lines=2,
# We also want to look at the next 1 line of context
show_k_next_lines=1
)
student_reasoning: 1.0
[STUDENT_1] and [STUDENT_0]: is bigger than
T: You both agree?
>> [STUDENT_1]: one half by one sixth. Cause if you put six ones up to a whole
[STUDENT_0]: dark green
student_reasoning: 1.0
T: Ok
[STUDENT_1]: So there’s six sixths
>> [STUDENT_0]: This would be one third, and this is one half of dark green, and then it would be bigger by one sixth, because
T: Do you both agree with that?
student_reasoning: 1.0
[STUDENT_1]: Yeah, and you take the two dark green rods, those are the halves... And you take two thirds, and put it up to it, and you take... two sixths, it's bigger than two sixths. And in this one, it you take this ...
T 2: Can we go back to that one again?
>> [STUDENT_1]: I mean it's bigger than one tenth, I mean twelfth, one twelfth, one twelfth.
T 2: How does that work? I'm confused about that. I’m confused about the little white rods, I am following you right up to that point.
🎉 Awesome! Another handy way to use QualitativeAnalyzer is to look at both positive and negative examples of student reasoning. You can do that by omitting the feature values specification:
[ ]:
qual_analyzer.print_examples(
df=df,
speaker_column=SPEAKER_COLUMN,
text_column=TEXT_COLUMN,
feature_column=STUDENT_REASONING_COLUMN,
max_num_examples=3,
show_k_previous_lines=2,
show_k_next_lines=1,
# feature_value="1.0", Omitted!
)
student_reasoning: 0.0
T: I'm wondering which is bigger, one half or two thirds. Now before you model it you might think in your head, before you begin to model it what you is bigger and if so, if one is bigger, by how much. Why don’t you work with your partner and see what you can do.
>> [STUDENT_0]: Try the purples. Get three purples. It doesn’t work, try the greens
[STUDENT_1]: What was it? Two thirds?
student_reasoning: 0.0
[STUDENT_0]: Try the purples. Get three purples. It doesn’t work, try the greens
[STUDENT_1]: What was it? Two thirds?
>> [STUDENT_0]: It would be like brown or something like that.
[STUDENT_1]: Ok
student_reasoning: 0.0
[STUDENT_0]: It would be like brown or something like that.
[STUDENT_1]: Ok
>> [STUDENT_0]: We’re not doing the one third, we’re doing two thirds. That is one third
[STUDENT_1]: First we’ve got to find out what a third of it is. What’s a third of an orange?
student_reasoning: 1.0
[STUDENT_1] and [STUDENT_0]: is bigger than
T: You both agree?
>> [STUDENT_1]: one half by one sixth. Cause if you put six ones up to a whole
[STUDENT_0]: dark green
student_reasoning: 1.0
T: Ok
[STUDENT_1]: So there’s six sixths
>> [STUDENT_0]: This would be one third, and this is one half of dark green, and then it would be bigger by one sixth, because
T: Do you both agree with that?
student_reasoning: 1.0
[STUDENT_1]: Yeah, and you take the two dark green rods, those are the halves... And you take two thirds, and put it up to it, and you take... two sixths, it's bigger than two sixths. And in this one, it you take this ...
T 2: Can we go back to that one again?
>> [STUDENT_1]: I mean it's bigger than one tenth, I mean twelfth, one twelfth, one twelfth.
T 2: How does that work? I'm confused about that. I’m confused about the little white rods, I am following you right up to that point.
🎉 Great! Looking at examples of focusing questions and high conversational uptake will be similar to the example above for student reasoning.
[ ]:
# Examples of focusing questions.
qual_analyzer.print_examples(
df=df,
speaker_column=SPEAKER_COLUMN,
text_column=TEXT_COLUMN,
feature_column=TEACHER_FOCUSING_QUESTION_COLUMN,
feature_value=1.0,
max_num_examples=3,
show_k_previous_lines=1,
# We might be more interested in the discourse that follows the focusing question!
# So increasing `show_k_next_lines`
show_k_next_lines=2,
)
# There's only one example of focusing questions, so it'll only print out one example.
focusing_questions: 1.0
[STUDENT_1]: And you put six ones up to the dark green
>> T: Hold on, I’m a little confused. Tell me again. Six ones? You called this one? What are you calling these?
[STUDENT_1]: One sixth
T: One sixth.
💡 Note: This function shows us interesting examples of when teachers use focusing questions. This is a great way to get a sense of how the teacher uses questions to guide the discourse in teaching.
[ ]:
# Examples of focusing questions.
qual_analyzer.print_examples(
df=df,
speaker_column=SPEAKER_COLUMN,
text_column=TEXT_COLUMN,
feature_column=UPTAKE_COLUMN,
feature_value=1.0,
max_num_examples=3,
# We're more interested in what precedes the high uptake.
show_k_previous_lines=1,
show_k_next_lines=0,
)
uptake: 1.0
[STUDENT_0]: Yeah, I know, and put ‘em up to there, and that would be one sixth. Hey, wait a minute, hey wait, maybe that’s it, yeah it’s bigger by one sixth
>> T: Now take six of the ones Which is bigger?
uptake: 1.0
[STUDENT_1]: And you put six ones up to the dark green
>> T: Hold on, I’m a little confused. Tell me again. Six ones? You called this one? What are you calling these?
💡 Note: This shows us examples of when the teacher is building on the contribution of the student. This can be useful in seeing high engagement between the teacher and student.
Awesome, this conclude the tutorial on QualitativeAnalyzer. For more information on this class, please refer to our documentation.
We’re now going to move onto the QuantitativeAnalyzer.
📊 Quantitative Analysis
Let’s start by looking at the data quantitatively. We will use the QuantitativeAnalyzer to look at the data.
Ever wondered whether there was a quick way to report aggregate statistics on: - Talk time? - Student reasoning? - Teacher focusing questions? - Conversational uptake?
This is where the QuantitativeAnalyzer comes in handy!
Let’s say we want to understand the talk time percentage split between the student and educator. We might want to know the statistic and plot the data. Here’s how we can do that:
[ ]:
analyzer = QuantitativeAnalyzer()
analyzer.print_statistics(
feature_column=TALK_TIME_COLUMN,
df=df,
speaker_column=SPEAKER_COLUMN,
value_as="prop" # We want to see the proportion of talk time
)
talktime
Proportion statistics
count mean std min 25% 50% 75% max
speaker
T 1.0 0.252459 NaN 0.252459 0.252459 0.252459 0.252459 0.252459
T 2 1.0 0.218579 NaN 0.218579 0.218579 0.218579 0.218579 0.218579
[STUDENT_0] 1.0 0.144262 NaN 0.144262 0.144262 0.144262 0.144262 0.144262
[STUDENT_1] 1.0 0.377049 NaN 0.377049 0.377049 0.377049 0.377049 0.377049
[STUDENT_1] and [STUDENT_0] 1.0 0.005464 NaN 0.005464 0.005464 0.005464 0.005464 0.005464
[STUDENT_2] 1.0 0.002186 NaN 0.002186 0.002186 0.002186 0.002186 0.002186
🎉 Great! This is a quick way to look at aggregate statistics on talk time.
💡 Note: In this single file, we can see under mean that [STUDENT_1] talks quite often — about 38% of the time!
❓ Curious about looking at aggregate statistics over multiple files? Jump to the section on Data Entry Points to learn more.

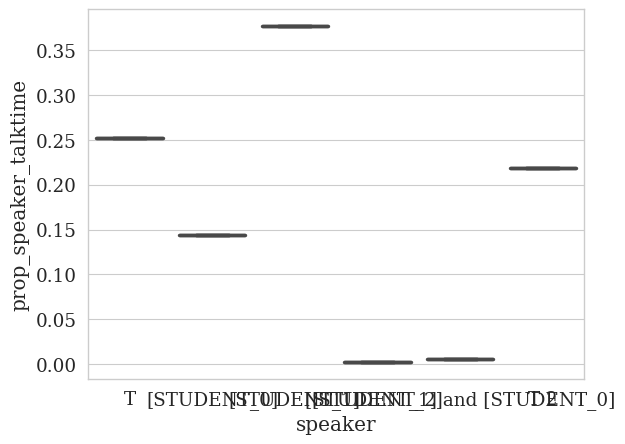

Similarly, we can plot this statistics:
[ ]:
analyzer.plot_statistics(
feature_column=TALK_TIME_COLUMN,
df=df,
speaker_column=SPEAKER_COLUMN,
value_as="prop"
)
<Figure size 640x480 with 0 Axes>

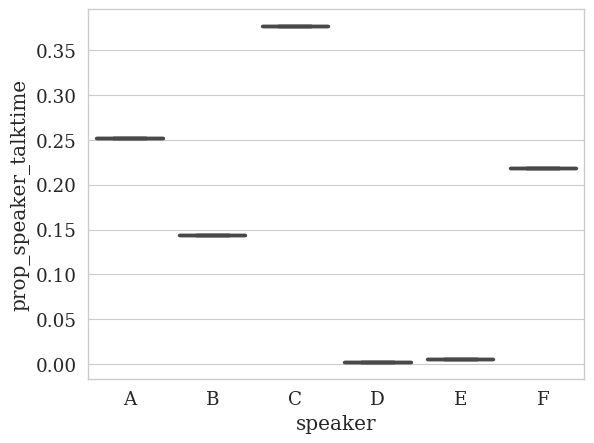

The speaker names are too long and so they overlap. We can fix this by creating a dictionary that maps the speaker names to shorter names:
[ ]:
# Create speaker mapping to A, B, C, D
label_mapping = {
speaker: chr(ord('A') + i) for i, speaker in enumerate(df[SPEAKER_COLUMN].unique())
}
print(f"Mapping: {label_mapping}")
# Pass this mapping into the analyzer
analyzer.plot_statistics(
# Everything else is the same
feature_column=TALK_TIME_COLUMN,
df=df,
speaker_column=SPEAKER_COLUMN,
value_as="prop",
# We want to use the mapping we created
label_mapping=label_mapping
)
Mapping: {'T': 'A', '[STUDENT_0]': 'B', '[STUDENT_1]': 'C', '[STUDENT_2]': 'D', '[STUDENT_1] and [STUDENT_0]': 'E', 'T 2': 'F'}
<Figure size 640x480 with 0 Axes>
🎉 Great, these simple examples show how we can report quantitative statistics on talk time.
The other statistics are similar to the example above for talk time. For conciseness, we will omit them here; but the only thing you need to do is change the feature_column argument to the feature you want to analyze.
We’ll now move onto the LexicalAnalyzer.
💬 Lexical Analysis
A lexical analysis is an analysis on the words used in the data. This is useful for understanding the low-level language (i.e., word usage) used by the student and educator. While a lexical analysis may be too low-level for capturing e.g., the meaning of the discourse, it can be a useful first step in capturing language trends in the data.
We will give a simple demonstration of two features of the LexicalAnalyzer: - Word Frequency: We will look at the most frequent words used by each speaker. - Log-Odds: We will look at the log-odds of words used by each speaker (i.e., which words are more likely to be used by the student vs. the educator).
First, let’s look at the most frequent words used by each speaker.
[ ]:
import nltk
nltk.download("stopwords")
analyzer = LexicalAnalyzer()
analyzer.print_word_frequency(
df=df,
text_column=TEXT_COLUMN,
speaker_column=SPEAKER_COLUMN,
# We want to look at the top 5 words
topk=5,
# We want to format the text e.g., remove punctuation and stopwords (https://en.wikipedia.org/wiki/Stop_word)
run_text_formatting=True
)
[nltk_data] Downloading package stopwords to /root/nltk_data...
[nltk_data] Package stopwords is already up-to-date!
Top Words By Speaker
T
works: 6
one: 5
bigger: 4
models: 4
write: 3
[STUDENT_0]
one: 10
would: 5
third: 4
yeah: 3
bigger: 3
[STUDENT_1]
one: 16
two: 13
take: 9
put: 8
yeah: 8
[STUDENT_2]
one: 1
half: 1
[STUDENT_1] and [STUDENT_0]
well: 1
bigger: 1
one: 1
T 2
one: 9
two: 8
interesting: 5
okay: 4
twelfths: 4
🎉 Nice, that was easy!
💡 We can see that there’s a lot of use of numbers and fractions (“one”, “third”), in addition to comparison language (“bigger”).
If you want to see the most frequent words overall, you can omit the speaker_column argument:
[ ]:
analyzer.print_word_frequency(
df=df,
text_column=TEXT_COLUMN,
# Bye! We don't care about the speaker anymore
# speaker_column=SPEAKER_COLUMN,
topk=5,
run_text_formatting=True
)
one: 42
two: 25
bigger: 15
yeah: 12
sixth: 11
🎉 Great, this is a quick way to look at the most frequent words used by each speaker.
❓ Curious in looking into common n-grams for the speakers? Please refer to our documentation for more information.
Let’s now move onto the log-odds analysis.
💡 Why a log-odds analysis?
Going beyond just counting frequent words in the student and teacher’s utterances, we might be interested in the chances of a word occurring in the student’s text over it occurring in the teacher’s text.
This gets us to a log-odds analysis on the words. For more information on log-odds analysis, please refer to this paper which applied the same analysis to study language use in political speeches.
In order to run a log-odds analysis, we need to specify two groups of texts we want to compare to each other. In this case, we are interested in comparing the student’s text to the teacher’s text. So let’s split our original dataframe into these two groups and pass them into the log-odds analysis.
[ ]:
speakers = df[SPEAKER_COLUMN].unique()
# Student speakers are ones that contain STUDENT in their name
student_speakers = [speaker for speaker in speakers if "STUDENT" in speaker]
# Teacher speakers are all the other speakers
teacher_speakers = [speaker for speaker in speakers if speaker not in student_speakers]
# Now let's split the data frame into two data frames: one for student speakers and one for teacher speakers
student_df = df[df[SPEAKER_COLUMN].isin(student_speakers)]
teacher_df = df[df[SPEAKER_COLUMN].isin(teacher_speakers)]
# We can now run the analyzer:
analyzer.print_log_odds(
df1=student_df,
df2=teacher_df,
text_column1=TEXT_COLUMN,
text_column2=TEXT_COLUMN,
# We want to look at the top 5 words
topk=5,
# We still want to format the text
run_text_formatting=True
)
Top words for Group 1
put: 1.5082544501223418
yeah: 1.4243179151183505
third: 1.323889968245073
take: 1.2333974083596422
green: 1.1289734037070032
Top words for Group 2
works: -1.5890822958913073
models: -1.5890822958913073
interesting: -1.447190205063502
see: -1.291347559145683
okay: -1.291347559145683
🎉 Awesome, this shows us both the words and odds of the words used by the student (Group 1) and educator (Group 2).
We can also plot this with a similar function call:
[ ]:
analyzer.plot_log_odds(
df1=student_df,
df2=teacher_df,
text_column1=TEXT_COLUMN,
text_column2=TEXT_COLUMN,
topk=5,
run_text_formatting=True,
# We can pass plot labels for group 1 and 2
group1_name="Student",
group2_name="Teacher"
)
<Figure size 640x480 with 0 Axes>
Neat, this concludes the tutorial on LexicalAnalyzer. There are other features of the LexicalAnalyzer that we did not cover here such as reporting n-gram frequency or performing a log-odds analysis on n-grams. For more information on these features, please refer to our documentation.
We’ll now move onto the last analyzer, the TemporalAnalyzer!
📈 Temporal Analysis
A temporal analysis is an analysis on the features over time. We define time as the time over the course of the transcript.

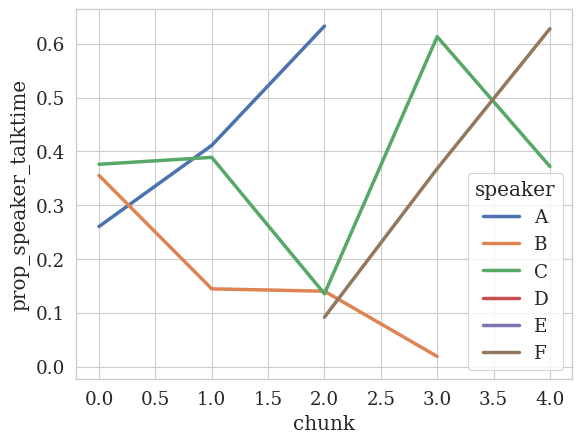

Let’s see how we can look at the talk time ratio (which we summarized before quantitatively) over time. This setup will look similar to the quantitative analysis however the key difference is that we will specify a num_bins argument to specify the number of bins we want to split the transcript into.
[ ]:
analyzer = TemporalAnalyzer()
# We'll use the same label mapping as before to abbreviate the speaker names
print(f"Label mapping: {label_mapping}")
analyzer.plot_temporal_statistics(
feature_column=TALK_TIME_COLUMN,
dfs=df,
speaker_column=SPEAKER_COLUMN,
# We want to see the proportion of talk time
value_as="prop",
# We will split the session into 5 bins
num_bins=5,
# We want to use the mapping we created
label_mapping=label_mapping
)
Label mapping: {'T': 'A', '[STUDENT_0]': 'B', '[STUDENT_1]': 'C', '[STUDENT_2]': 'D', '[STUDENT_1] and [STUDENT_0]': 'E', 'T 2': 'F'}
<Figure size 640x480 with 0 Axes>
🎉 Plotting the temporal data was straightforward!
💡 There are some interesting observations, for example: - Speaker B ([STUDENT_0]) decreases their talk time over time whereas - Speaker C (the other student, [STUDENT_1]) has fluctuating talk time over time.

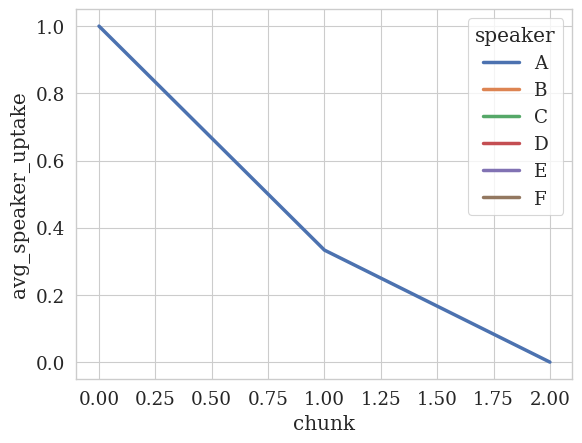

Let’s also look at the conversational uptake over time. Remember that conversational uptake is looking at how the teacher builds on the student’s contribution. So we’ll only see values on the teacher speaker, and not the students (that’s how the feature was annotated).
[ ]:
# We'll use the same label mapping as before to abbreviate the speaker names
print(f"Label mapping: {label_mapping}")
analyzer.plot_temporal_statistics(
feature_column=UPTAKE_COLUMN,
dfs=df,
speaker_column=SPEAKER_COLUMN,
# We want to see the average uptake (this is different from proportion: average looks at within-speaker average, whereas proportion looks at across-speaker average)
value_as="avg",
num_bins=5,
label_mapping=label_mapping
)
Label mapping: {'T': 'A', '[STUDENT_0]': 'B', '[STUDENT_1]': 'C', '[STUDENT_2]': 'D', '[STUDENT_1] and [STUDENT_0]': 'E', 'T 2': 'F'}
/usr/local/lib/python3.10/dist-packages/edu_convokit/analyzers/temporal_analyzer.py:57: RuntimeWarning: invalid value encountered in double_scalars
f"prop_speaker_{feature_column}": speaker_df[feature_column].sum() / feature_sum,
<Figure size 640x480 with 0 Axes>
💡 Super interesting! In this transcript, we see that the teacher’s conversational uptake decreases over time.
This example shows how powerful a temporal analysis can be in understanding the data and how TemporalAnalyzer makes it easy to perform this analysis. There are many other features that you can perform a temporal analysis on. For more information, please refer to our documentation.
🤖 GPT Analysis
Finally, we can use GPT to analyze the data. This is a powerful tool that can be used to summarize the transcript, or generate other natural language analysis insights.
In order for this to work, you need to set your API key below.
⚠️ Warning: Never publicly share your API key! If you are using this notebook in a public setting, please remove your API key before sharing.
[10]:
import os
os.environ["OPENAI_API_KEY"] = "YOUR_API_KEY"
Before we prompt the model, we can preview the prompt with the preview_prompt function. This will show us the prompt that will be sent to the model.
[8]:
analyzer = GPTConversationAnalyzer()
prompt = analyzer.preview_prompt(
df=df,
prompt_name="summarize",
text_column=TEXT_COLUMN,
speaker_column=SPEAKER_COLUMN,
model="gpt-4",
format_template="{speaker}: {text}",
)
print(prompt)
Consider the following transcript of a conversation between a teacher and a student.
Transcript:
T: I'm wondering which is bigger, one half or two thirds. Now before you model it you might think in your head, before you begin to model it what you is bigger and if so, if one is bigger, by how much. Why don’t you work with your partner and see what you can do.
[STUDENT_0]: Try the purples. Get three purples. It doesn’t work, try the greens
[STUDENT_1]: What was it? Two thirds?
[STUDENT_0]: It would be like brown or something like that.
[STUDENT_1]: Ok
[STUDENT_0]: We’re not doing the one third, we’re doing two thirds. That is one third
[STUDENT_1]: First we’ve got to find out what a third of it is. What’s a third of an orange?
[STUDENT_0]: One third?
[STUDENT_1]: What’s third of an orange? Let’s start a different model. The green. The green, half of it is the light green
[STUDENT_0]: Alright, yeah, I was thinking of that way before
[STUDENT_1]: And you can take the take the red, and the light green, and put it up to it , it’s, she asked, is one half bigger than, what did she ask? What did she ask?
[STUDENT_0]: She asked, which is bigger, one half or two thirds?
[STUDENT_1]: One half or two thirds? Now take six of the ones
[STUDENT_0]: Yeah, I know, and put ‘em up to there, and that would be one sixth. Hey, wait a minute, hey wait, maybe that’s it, yeah it’s bigger by one sixth
T: Now take six of the ones Which is bigger?
[STUDENT_2]: One half
[STUDENT_0]: I think one half is...
T: Yes, [STUDENT_0] and [STUDENT_1]?
[STUDENT_0]: What do you have?
[STUDENT_1] and [STUDENT_0]: Well
[STUDENT_0]: we think
[STUDENT_1]: two thirds
[STUDENT_1] and [STUDENT_0]: is bigger than
T: You both agree?
[STUDENT_1]: one half by one sixth. Cause if you put six ones up to a whole
[STUDENT_0]: dark green
[STUDENT_1]: If you put it up to a whole
T: I’m sorry, what’s the number name for dark green
[STUDENT_1] and [STUDENT_0]: One
T: Ok.
[STUDENT_1]: And you put six ones up to the dark green
T: Hold on, I’m a little confused. Tell me again. Six ones? You called this one? What are you calling these?
[STUDENT_1]: One sixth
T: One sixth.
[STUDENT_0]: And then these, this would be
[STUDENT_1]: We’re calling them each sixths,
T: Ok
[STUDENT_1]: So there’s six sixths
[STUDENT_0]: This would be one third, and this is one half of dark green, and then it would be bigger by one sixth, because
T: Do you both agree with that?
[STUDENT_1]: Yeah, mm hmm.
T: Ok, could you write that up? Uh, let me get you some paper, I want you to write that up. And see if you can make me - if it works for other models because some students don’t believe that it works for other models and I think you two believe that it works for other models
[STUDENT_1]: Mmm hmm, yeah
T: So can you try to find some so that you can try to convince them that it should work for other models, and come up with a way of explaining it to the class, ok? That if it works, if you really believe it, that if it works for one it works for others, and then write this up, let me get you some paper.
[STUDENT_1]: Seven, nine, ten, I need them. Go get another box.
T 2: Ok I see you had your hands up over here?
[STUDENT_1]: Yeah
T 2: Let me come around and see what you’re doing.
[STUDENT_1]: We found two answers
[STUDENT_0]: Well, I have three.
T 2: You have two solutions... three. Ok, let me hear about one of these models. Here, which one do you want to tell me about?
[STUDENT_1]: That one.
T 2: Yeah, that's an interesting looking one, tell me about it.
[STUDENT_1]: Now if you call this rod one...
T 2: The orange and red together?
[STUDENT_1]: Yeah, and you take the two dark green rods, those are the halves... And you take two thirds, and put it up to it, and you take... two sixths, it's bigger than two sixths. And in this one, it you take this ...
T 2: Can we go back to that one again?
[STUDENT_1]: I mean it's bigger than one tenth, I mean twelfth, one twelfth, one twelfth.
T 2: How does that work? I'm confused about that. I’m confused about the little white rods, I am following you right up to that point.
[STUDENT_1]: If you put the white rods up to here, there's twelve of them, and then you call them twelfths, because there are twelve of them.
T 2: All right, okay.
[STUDENT_1]: And then you take the two thirds, and you take two twelfths, and then you put it up to the thirds and it is bigger by two tens... two twelfths.
T 2: By two twelfths, okay.
[STUDENT_1]: If you use this model...
T 2: Uh hmm.
[STUDENT_1]: And if you use this model
T 2: Uh hmm.
[STUDENT_1]: And you call these sixths, and you put this one up to it and it is bigger than one sixth.
T 2: Okay, so here it was bigger by two twelfths and here it was bigger by one sixth.
[STUDENT_1]: Yeah.
T 2: That's interesting. Could we call the difference between the two thirds and the one half in this model another number name besides two twelfths?
[STUDENT_1]: Um, yeah, well, maybe...
T 2: You said two of those little white ones were two twelfths, right?
[STUDENT_1]: Yeah, and maybe since two of these little white ones equals up to one of these or it's one fifth, oh, I mean one sixth, the reds
T 2: Oh, that's interesting, that's kind of interesting, then, so if you then used the reds to describe the difference, you could call this one sixth, the difference.
[STUDENT_1]: Uh hmm.
T 2: And over here one of the whites you say is one sixth?
[STUDENT_1]: Yeah.
T 2: Oh, that’s interesting, two different models. Okay.
Please summarize the conversation in a few sentences.
Summary:
Now you can prompt the model with the prompt_model function. This will return the response from the model.
[9]:
prompt, response = analyzer.run_prompt(
df=df,
prompt_name="summarize",
text_column=TEXT_COLUMN,
speaker_column=SPEAKER_COLUMN,
model="gpt-4",
format_template="{speaker}: {text}",
)
print(response)
The teacher asked the students to determine which is larger, one half or two thirds, and by how much. The students used different colored rods to represent fractions and concluded that two thirds is larger than one half by one sixth. They then tested their theory with different models, using different rods to represent different fractions, and found that their conclusion held true. The teacher encouraged them to write up their findings and explain them to the class.
There are many other prompts that you can perform a GPT analysis on. For more information, please see our prompts database here.
Data Entry Points for Analyzer
In the previous sections, we looked at how to use the Analyzer modules on a single transcript. However, you might be interested in analyzing multiple transcripts at once. In this section, we will look at the different data entry points for the Analyzer modules. We’ll use the TemporalAnalyzer as an example for demonstrating the different data entry points.
Single Transcript
In the previous example, we saw how to analyze a single transcript. We did this by loading the transcript into a dataframe and passing it into every function call of TemporalAnalyzer like:
[ ]:
analyzer = TemporalAnalyzer()
analyzer.plot_temporal_statistics(
feature_column=TALK_TIME_COLUMN,
dfs=df,
speaker_column=SPEAKER_COLUMN,
value_as="prop",
num_bins=5,
label_mapping=label_mapping
)
<Figure size 640x480 with 0 Axes>
Another way, we could have done this is by passing either (a) the transcript file path or (b) dataframe into the TemporalAnalyzer constructor:
[ ]:
# (a) Passing in the filename
analyzer = TemporalAnalyzer(filenames=data_fname)
analyzer.plot_temporal_statistics(
feature_column=TALK_TIME_COLUMN,
# We don't need to pass in the data frame anymore
# dfs=df,
speaker_column=SPEAKER_COLUMN,
value_as="prop",
num_bins=5,
label_mapping=label_mapping
)
# (b) Passing in the data frame
analyzer = TemporalAnalyzer(dfs=df)
analyzer.plot_temporal_statistics(
feature_column=TALK_TIME_COLUMN,
# We don't need to pass in the data frame anymore
# dfs=df,
speaker_column=SPEAKER_COLUMN,
value_as="prop",
num_bins=5,
label_mapping=label_mapping
)
<Figure size 640x480 with 0 Axes>
As expected, we get the same results as before.
Data Directory
Let’s say we have a directory of transcripts and we want to analyze all of them. We can do this by passing the directory path into the TemporalAnalyzer constructor, and then analyzing the data:
[ ]:
# Let's first prepare the data directory
DATA_DIR = "sample_data_colab"
!mkdir -p $DATA_DIR
# Let's download the data and save it to the data directory. We'll use three transcripts as examples.
!wget https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4244.csv -O $DATA_DIR/4244.csv
!wget https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4245.csv -O $DATA_DIR/4245.csv
!wget https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4246.csv -O $DATA_DIR/4246.csv
--2023-12-30 10:43:12-- https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4244.csv
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.108.133, 185.199.109.133, 185.199.110.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.108.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 27052 (26K) [text/plain]
Saving to: ‘sample_data_colab/4244.csv’
sample_da 0%[ ] 0 --.-KB/ssample_data_colab/4 100%[===================>] 26.42K –.-KB/s in 0.002s
2023-12-30 10:43:12 (15.8 MB/s) - ‘sample_data_colab/4244.csv’ saved [27052/27052]
—2023-12-30 10:43:12– https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4245.csv Resolving raw.githubusercontent.com (raw.githubusercontent.com)… 185.199.110.133, 185.199.109.133, 185.199.108.133, … Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.110.133|:443… connected. HTTP request sent, awaiting response… 200 OK Length: 30713 (30K) [text/plain] Saving to: ‘sample_data_colab/4245.csv’
sample_data_colab/4 100%[===================>] 29.99K –.-KB/s in 0.003s
2023-12-30 10:43:12 (11.1 MB/s) - ‘sample_data_colab/4245.csv’ saved [30713/30713]
—2023-12-30 10:43:12– https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4246.csv Resolving raw.githubusercontent.com (raw.githubusercontent.com)… 185.199.109.133, 185.199.110.133, 185.199.108.133, … Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.109.133|:443… connected. HTTP request sent, awaiting response… 200 OK Length: 14760 (14K) [text/plain] Saving to: ‘sample_data_colab/4246.csv’
sample_data_colab/4 100%[===================>] 14.41K –.-KB/s in 0s
2023-12-30 10:43:12 (65.8 MB/s) - ‘sample_data_colab/4246.csv’ saved [14760/14760]
</pre>
sample_data_colab/4 100%[===================>] 26.42K –.-KB/s in 0.002s
2023-12-30 10:43:12 (15.8 MB/s) - ‘sample_data_colab/4244.csv’ saved [27052/27052]
—2023-12-30 10:43:12– https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4245.csv Resolving raw.githubusercontent.com (raw.githubusercontent.com){ldots} 185.199.110.133, 185.199.109.133, 185.199.108.133, {ldots} Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.110.133|:443{ldots} connected. HTTP request sent, awaiting response{ldots} 200 OK Length: 30713 (30K) [text/plain] Saving to: ‘sample_data_colab/4245.csv’
sample_data_colab/4 100%[===================>] 29.99K –.-KB/s in 0.003s
2023-12-30 10:43:12 (11.1 MB/s) - ‘sample_data_colab/4245.csv’ saved [30713/30713]
—2023-12-30 10:43:12– https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4246.csv Resolving raw.githubusercontent.com (raw.githubusercontent.com){ldots} 185.199.109.133, 185.199.110.133, 185.199.108.133, {ldots} Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.109.133|:443{ldots} connected. HTTP request sent, awaiting response{ldots} 200 OK Length: 14760 (14K) [text/plain] Saving to: ‘sample_data_colab/4246.csv’
sample_data_colab/4 100%[===================>] 14.41K –.-KB/s in 0s
2023-12-30 10:43:12 (65.8 MB/s) - ‘sample_data_colab/4246.csv’ saved [14760/14760]
end{sphinxVerbatim}
sample_data_colab/4 100%[===================>] 26.42K –.-KB/s in 0.002s
2023-12-30 10:43:12 (15.8 MB/s) - ‘sample_data_colab/4244.csv’ saved [27052/27052]
—2023-12-30 10:43:12– https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4245.csv Resolving raw.githubusercontent.com (raw.githubusercontent.com)… 185.199.110.133, 185.199.109.133, 185.199.108.133, … Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.110.133|:443… connected. HTTP request sent, awaiting response… 200 OK Length: 30713 (30K) [text/plain] Saving to: ‘sample_data_colab/4245.csv’
sample_data_colab/4 100%[===================>] 29.99K –.-KB/s in 0.003s
2023-12-30 10:43:12 (11.1 MB/s) - ‘sample_data_colab/4245.csv’ saved [30713/30713]
—2023-12-30 10:43:12– https://raw.githubusercontent.com/rosewang2008/edu-convokit/master/data/analyzers/4246.csv Resolving raw.githubusercontent.com (raw.githubusercontent.com)… 185.199.109.133, 185.199.110.133, 185.199.108.133, … Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.109.133|:443… connected. HTTP request sent, awaiting response… 200 OK Length: 14760 (14K) [text/plain] Saving to: ‘sample_data_colab/4246.csv’
sample_data_colab/4 100%[===================>] 14.41K –.-KB/s in 0s
2023-12-30 10:43:12 (65.8 MB/s) - ‘sample_data_colab/4246.csv’ saved [14760/14760]
[ ]:
# Now let's analyze the data in this directory.
analyzer = TemporalAnalyzer(data_dir=DATA_DIR)
analyzer.plot_temporal_statistics(
feature_column=TALK_TIME_COLUMN,
speaker_column=SPEAKER_COLUMN,
value_as="prop",
num_bins=5,
)
<Figure size 640x480 with 0 Axes>

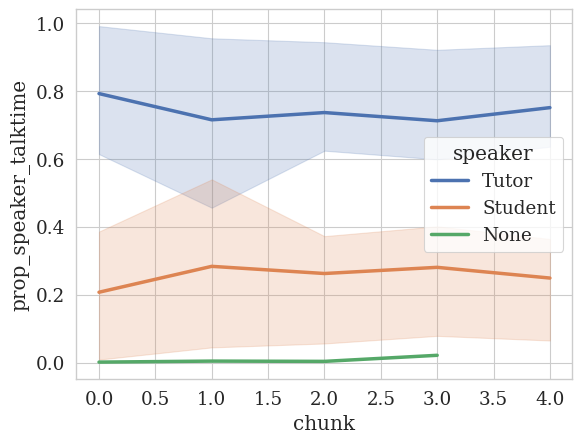

💡 Neat! On this directory of transcripts, we see that the talk time ratio is pretty consistent during the tutoring session: The Tutor talks about 80% of the time and the Student talks about 20% of the time.
There also seems to be a speaker named None — this is coming from missing annotations in the Amber dataset: link.
Multiple Transcripts
Let’s say we have a list of specific transcripts and we want to analyze them. We can easily do this by passing the list of transcript file paths into the TemporalAnalyzer constructor, and then analyzing the data:
[ ]:
import os
filenames = [
# Let's just analyze two of the transcripts
os.path.join(DATA_DIR, "4244.csv"),
os.path.join(DATA_DIR, "4246.csv"),
]
analyzer = TemporalAnalyzer(filenames=filenames)
# Same function call
analyzer.plot_temporal_statistics(
feature_column=TALK_TIME_COLUMN,
speaker_column=SPEAKER_COLUMN,
value_as="prop",
num_bins=5,
)
<Figure size 640x480 with 0 Axes>
📝 Conclusion and Where to Go From Here
In this tutorial, we learned how to use Analyzer to analyze our data. We learned how to use: - 🔍 QualitativeAnalyzer to look at examples of annotations, such as student reasoning. - 📊 QuantitativeAnalyzer to look at aggregate statistics on annotations, such as talk time. - 💬 LexicalAnalyzer to look at the words used in the data, such as the most frequent words used by the student or the words that distinguish the student from the educator. - 📈 TemporalAnalyzer to look at the
annotations over time, such as the talk time ratio over time. - 🤖 GPTAnalyzer to use GPT to analyze the data, such as summarizing the transcript.
Additionally, we learned about the different data entry points for Analyzer, such as a single transcript, a directory of transcripts, or a list of transcripts.
This concludes the final general tutorial on edu-convokit! 🎉
What are some natural next steps? If you are interested in seeing examples of these analyzers on full datasets, please check out our other tutorials where we apply everything to the: - NCTE dataset with an elementary math classroom data - TalkMoves dataset with a K-12 math classroom data - Amber dataset, with 8th/9th grade math tutoring data
For additional tutorials on edu-convokit, please refer to our documentation.
If you have any questions, please feel free to reach out to us on `edu-convokit’s GitHub <https://github.com/rosewang2008/edu-convokit>`__.
👋 Happy exploring your data with edu-convokit!
[ ]:
